Node data that is not defined to cover an entire area can be displayed as points. By selecting this type of display, a marker is displayed at the corresponding node, which has a specific colour depending on the size of the attribute value. This is particularly useful for point data such as well abstractions (KNOT attribute) or leakage coefficients (LERA, LEKN attributes).

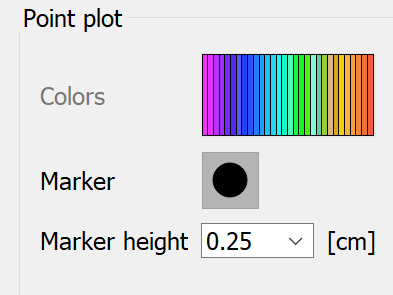

A marker type can be selected from the marker list in the input block. The size of the marker is defined in the Marker height input field:

The categorisation of the values is analogous to the intervals described in the chapter „ Isolines” .
