Node and element data can be displayed as values. The values displayed at the nodes or element centres are not texts, but digits as polylines. The digit height is preset to 0.18 cm in the menu Edit Options Plot option Size (plogeo.ini command HWER ).

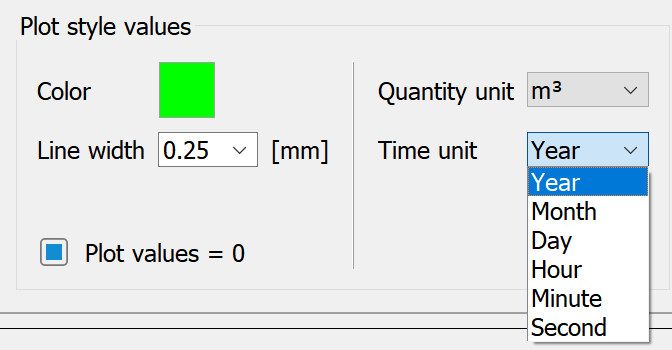

A colour can be selected in the input block and the line width can be specified. When displaying rate data, in addition to the unit m³/?/TU (TU = time unit of the mesh file) stored in the background, the data can also be converted into other quantity and time units.

By ticking the Plot values = 0 box, these values are explicitly displayed, otherwise values equal to zero are ignored and not plotted.
