The export of isolines with value assignment is possible in SPRING via the following entry in the batch file for plotting.

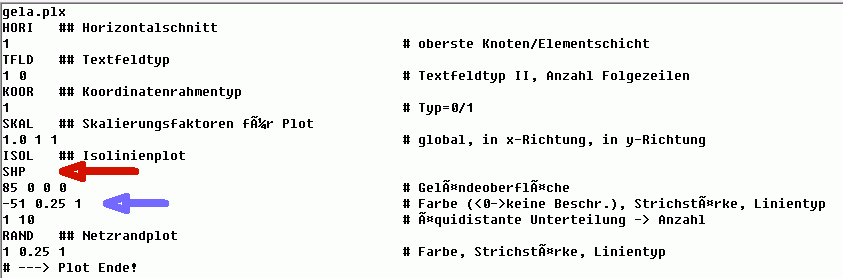

By adding "SHP" (red arrow) in the display block of the desired data type (as isolines), the corresponding Shapefiles are exported after executing the batch file. Input and execution in the plot creation dialogue is currently not possible.

The isolines should be displayed WITHOUT labelling ("-" in front of the colour number, blue arrow), as otherwise there will be gaps in the exported isolines.

If the distance between the isolines to be exported is less than 1.0, the user must first set the decimal places of the isolines in the plot options (SPRING Edit Preferences: Plogeo Isolines) to at least 1 (depending on the interval), otherwise several isolines will have the same value.
