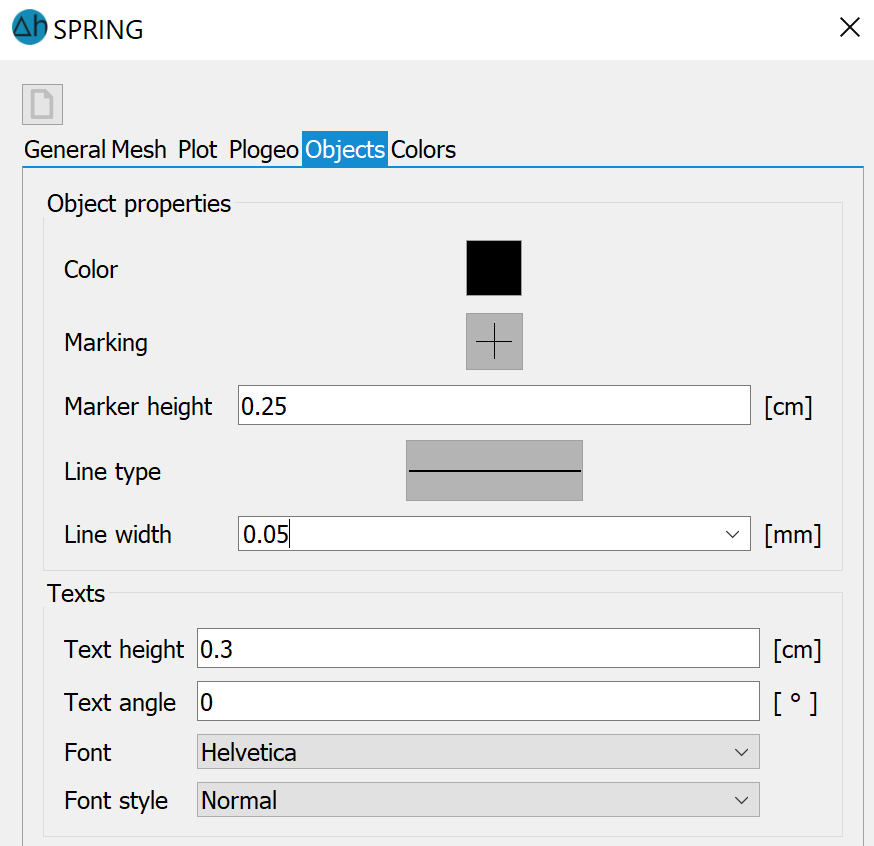

The following window appears:

The object attributes to be selected here relate to the objects that can be created using the View Toolbar Object properties (markers, lines, geometric figures, texts).





Object properties

• Preset colour for the display of objects (Variable SPRINGcolDefault)

• Preset marker for an object (Variable SPRINGmtypDefault)

• Preset marker height of the object (Variable SPRINGmhgtDefault)

• Preset line type for an object (Variable SPRINGltypDefault)

• Preset line width for an object (Variable SPRINGpenwDefault)





Text properties

• Preset text height (Variable SPRINGtxthDefault)

• Preset text angle (Variable: SPRINGanglDefault)

• Preset font and font style: (variable SPRINGfontDefault), the fonts available for selection are: Helvetica, Roman, Courier, Symbol and the font styles: normal, bold, italic, bold and italic.



The font and the font style are summarised in the variable SPRINGfontDefault. It consists of a two-digit integer greater than or equal to 10.

Meaning of the 1st digit (font):

1 = Helvetica

2 = Roman

3 = Courier

4 = Symbol



Meaning of the second digit (type style):

0 = normal

1 = bold

2 = italic

3 = bold and italic



This means that if the SPRINGfontDefault variable has the value "32", the text object is displayed in Courier italic. The Symbol font can only be displayed normally (= 40).
