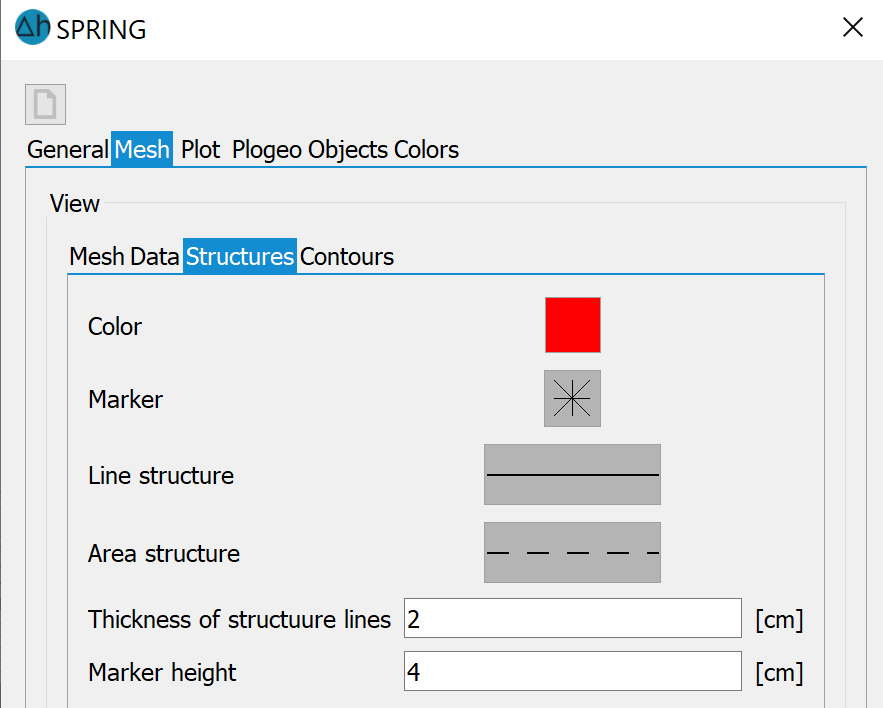

The following input window appears to modify the display attributes of structures in the preferences:

• Preset colour for the display of structures(variable XSUSIStruPen)

• For point structures, the marker type set with the XSUSIStruMtype variable and the marker height set with the XSUSIStruHeight variable are used as the default setting.

• For line structures, the line type set with the XSUSILtyp variable is used as the default setting (variable XSUSILtyp)

• When displaying area structures (as polygons), the line type set with the XSUS- IStruFtyp variable is used as the default setting (variable XSUSIStruFtyp).

• For line structures, the line thickness is preset with the variable XSUSIStruPenWidth.

If one of these options is changed in the options menu, this has no effect on the display of existing structures. Their display attributes can be changed via the menu item Structure Edit.
