Here you can select from the following menu items:

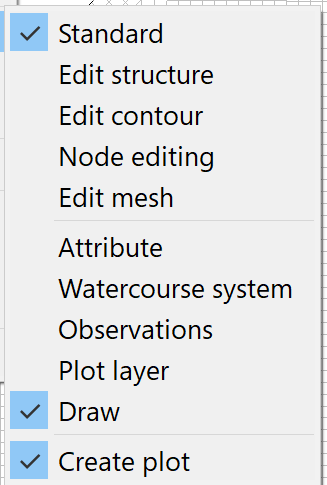

By selecting an option from this menu the editing toolbars are displayed. Some toolbars can only be displayed in the model file mode; the Standard, Plot layer, Draw and Create Plot toolbars can be utilized in both the model file and plot file modes.



Standard toolbar

(model and plot file)



The toolbar shown above is the "Standard" toolbar in Model file mode. In Plot file mode, this toolbar does not have the buttons associated with mesh editing



Edit structure toolbar

(model file only)



Edit contour toolbar

(model file only)



Node editing toolbar

(model file only)



Edit mesh toolbar

(model file only)



Attribute toolbar

(model file only)



Watercourse system toolbar

(model file only)



Plot layer toolbar

(model and plot file)



Draw toolbar

(model and plot file)



Object properties toolbar

(model and plot file)

The "Object properties" toolbar is accessed when using the show/assign object properties buttons from the Draw toolbar items. The existing object properties can be displayed by selecting the "Show object properties" button and then selecting the desired object with the left mouse button. The object attributes can be preconfigured and assigned with the "Assign object properties" button by clicking on the object(s) (marker, line, text) that you would like to format.



Create plot toolbar

(model and plot file)

A toolbar appears, in which the two types of plot creation (plan/map display, section/profile display) can be called up or an update of the displayed plot is possible.
