Distribution functions

Distribution functions

The following distribution functions are used for stochastic allocation:



  • Normal distribution

The normal distribution has the density function:



Input values for the generation of normally distributed values (x) are:



σ = Standard deviation

σ2 = Variance

µ = Mean value

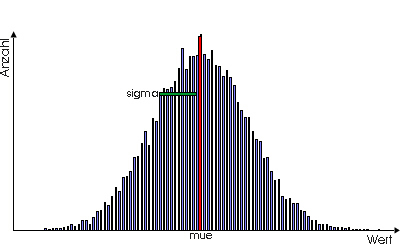

Density function for approx.. 18,000 values generated with the normal distribution



  • Log-normal distribution

With the log-normal distribution, the logarithm of the generated values is normally distributed:





Input values for generating lognormally distributed values (x > 0) are:



σ = Standard deviation

σ2 = Variance

µ = Mean value

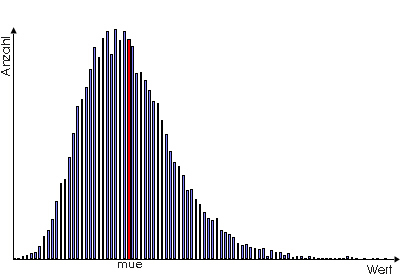

Density function for approx.. 18,000 values generated with the log-normal distribution



  • Exponential distribution (uncorrelated generation only)

The exponential distribution has the density function for x > 0::



The input value for generating exponentially distributed values x > 0 is the mean value μ.

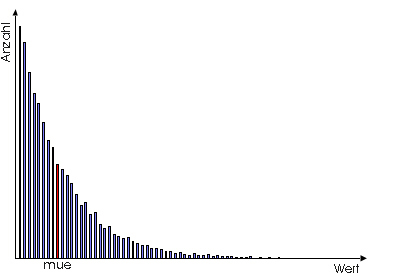

Density function for approx.. 18,000 values generated with an exponential distribution
