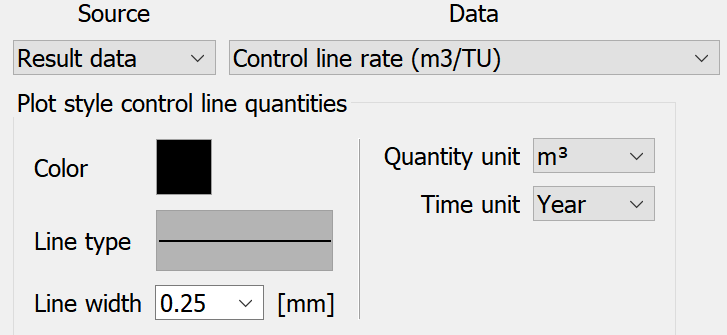

If a control line calculation has been carried out, the following input block appears after the corresponding selection:

The results of a control line calculation are displayed as a polygon with direction arrows and the respective rate labelling (KONT batch command). For this purpose, a colour and a line type must be selected and a line width specified. The unit of measure can be converted as required. The default unit is m³ per time unit of the model file.
