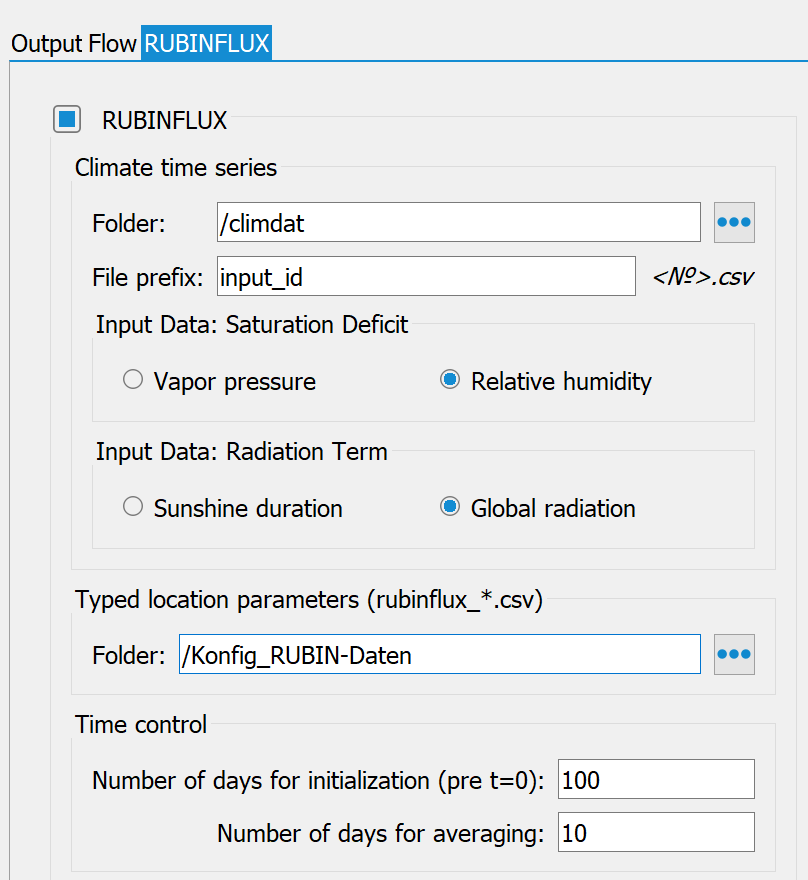

By activating the "RUBINFLUX" button in the RUBINFLUX input window, you can decide whether the calculation of transient recharge rates should take place "on-the-fly", i.e. during the transient calculation, in the background. In this case, the transient input file must not contain any recharge data, as this would also be taken into account and thus possibly double the amount of water that would be included in the calculation.

Alternatively, the transient recharge rates can be saved in the transient input file via the menu item Attributes Compute Groundwater recharge RUBINFLUX.... In this case, the "RUBINFLUX" checkbox must not be activated (as it would double the recharge.

The entries correspond to those that are requested when the menu item Attributes Compute Groundwater recharge RUBINFLUX... is called up. Therefore, please refer to the explanations of the inputs in the chapter: "How To - transient groundwater recharge calculation". If the groundwater level is to be taken into account during the 'on-the-fly' calculation of recharge rates, the currently calculated groundwater level is used when the 'Coupled Simulation' checkbox is activated.

Observation of the calculation results during the transient calculation
