Once all contours have been adjusted, the nodes are generated. Generally, node generation is recommended in the following order:

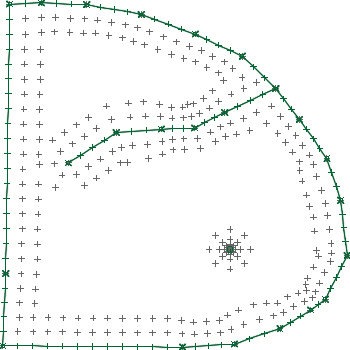

• Generation of nodes on the contours and normal to the contours with 1-2 steps of the boundary node generator,

Boundary node generator

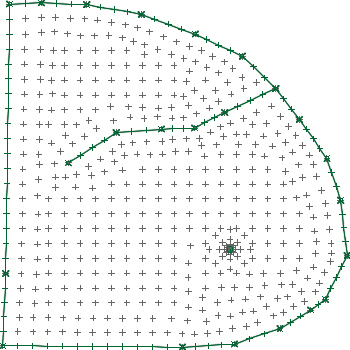

• Creation of node grids in areas without contours,

Grid node generator

• Creation of further nodes by hand in the transition areas.

Manually moving and deleting nodes can be used to optimises node distribution.
