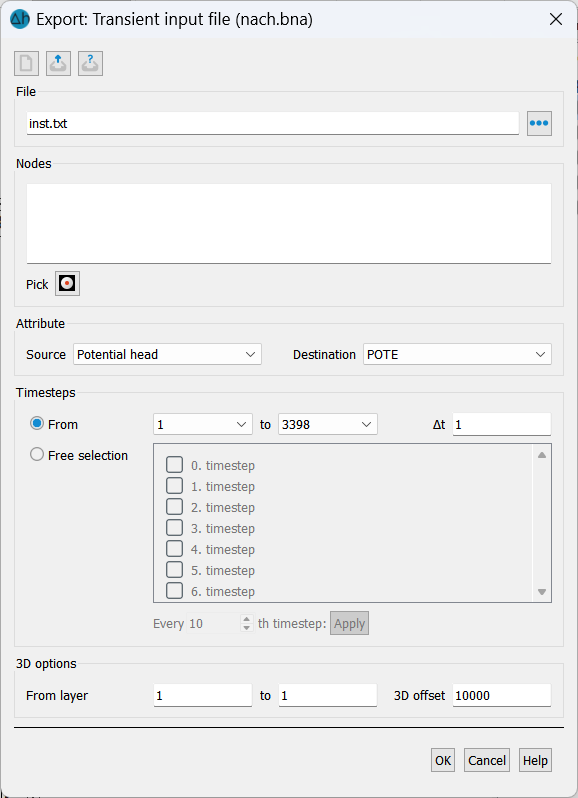

The following input window appears:

Input for saving transient calculation results



File

The name of the new transient input file is defined here.



Nodes

The node numbers can be selected either via the number list or interactively by activating the Pick button and selecting directly in the model.



Attributes

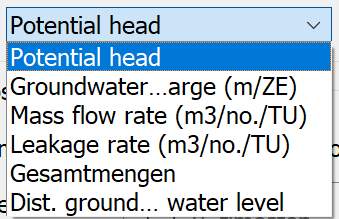

Firstly, the source data is defined. These correspond to the output data after a transient calculation:

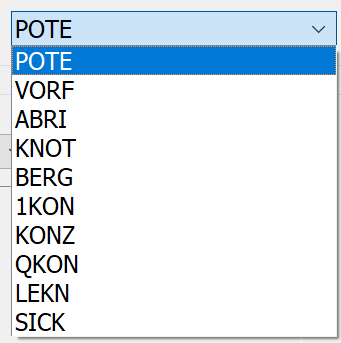

The attribute assignment then takes place in the target file. The possible transient node attributes are available for selection here:



Timesteps

It is possible to select whether certain points in time from - to are to be saved at intervals of DeltaT (e.g. = 2 means that only the 1st, 3rd, 5th etc. time steps are saved), or there is a free selection of the time steps to be saved.



3D options

In the case of a 3D model, a selection of the layers to be saved and a corresponding offset can also be specified.

The buttons at the top of the input window allow you to reset the input parameters (), open an existing batch file () or save the current batch file under a different name ()



Batch file for the output of transient data
