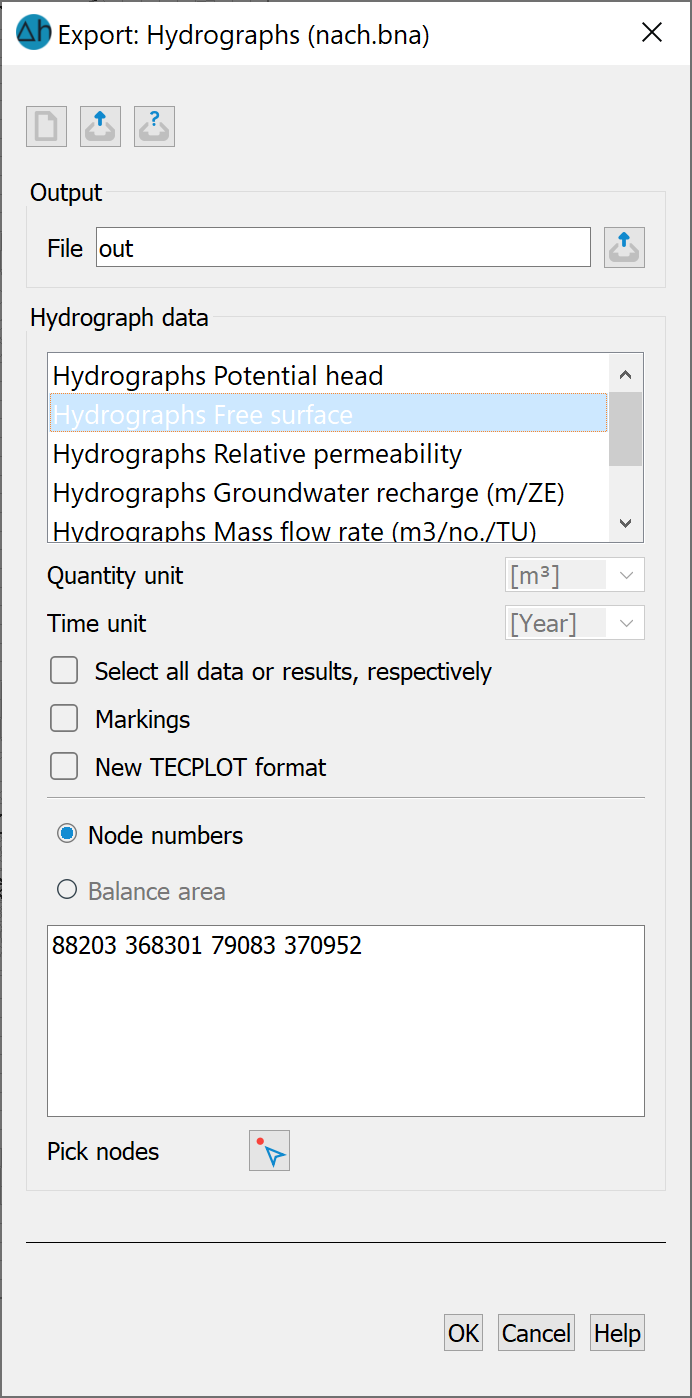

The following input window appears:

Input for the hydrograph output

Output

The name of the output file is defined here, the extension .csv is automatically appended.

Hydrograph data

Selection of a data type for which chart data is to be exported. If it is a rate-related data type, the unit of the exported data can be explicitly defined [unit of measure per time unit].

Selection of nodes or elements or balance areas

Depending on the selected data type, the node or element numbers for which hydrographs are generated are defined here. They can also be entered interactively on the screen (nodes/elements

catch ).

If balance areas (identifier BILK/BILE) have been defined, you must specify for rate hydrographs whether hydrographs are to be generated for individual nodes or elements or summarised for areas.

Node or element numbers of 3D models from deeper layers may have to be increased by the corresponding 3D number offset.

The buttons at the top of the input window allow you to reset the input parameters (), open an existing batch file () or save the current batch file under a different name ()

Batch file for the output of hydrographs
