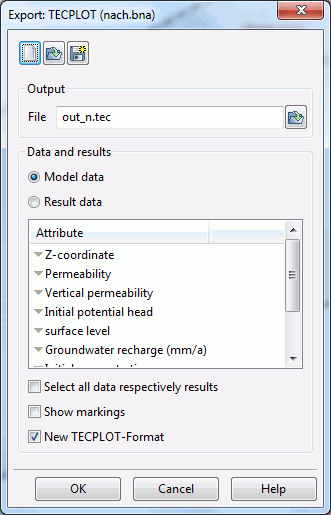

The following input window appears:







Output

Here the name of the output file is determined to which the specific extensions are attached.



Data and results

The desired data types are selected here.

By entering a point in time at "Go to ..." the presentation jumps through the results (after a transient calculation) to the entered date.

The output for TECPLOT generally writes off the model or result data for all layers. In the program TECPLOT itself the user can then select the desired layer. By holding down the Ctrl key multiple data types can be selected. If all model and results data should be exported, there is a checkbox "Select all data respectively results" below the list.

Furthermore, there is the possibility to export the in the model existing markers for TECPLOT. For this, the checkbox "Show markings" should be activated.

To save in the new block format of TECPLOT the corresponding checkbox has to be enabled. This format exports the layer number as an element-centric attribute in 3D models, which allows the selective hiding or showing of element layers in TECPLOT.





The buttons at the top of the input window allow resetting the input parameters (), opening an existing batch file () or saving the current batch file under another name ().



Batch file for the TECPLOT output
