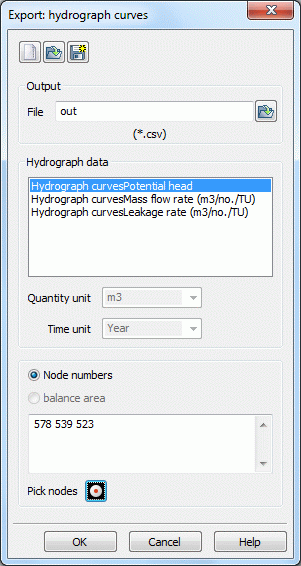

The following input window appears:







Output

Here the name of the output file is determined to which the extension *.csv is attached.



Hydrograph data

The type of data is determined which should be exported for the hydrograph. If it is a quantity-based data type the unit can be determined explicitly [quantity per unit of time].



Selecting the nodes, elements or balance areas

Depending on the selected data type here the node or element numbers are set for which the hydrographs should be generated. They can also be captured interactively on the screen (capture nodes/elements).

Were balance areas (attributes BILK or BILE) defined, it must be specified if the hydrographs are created for individual nodes or elements or for the whole areas.

Node or element numbers from deeper layers in 3D models need to be increased by the corresponding 3D-number offset



The buttons at the top of the input window allow resetting the input parameters (), opening an existing batch file () or saving the current batch file under another name ().



Batch file for the output of hydrographs
